Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226
HomeStore

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226

$98.70

Original: $329.00

-70%
Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226—

$329.00

$98.70

The Story



BRIGGS AND STRATTON

550 SERIES
The 550 Series engine utilizes Overhead Valve (OHV) technology. It features an automotive-style air filter, cast iron cylinder sleeve, and dual ball bearings for longer life.

MODEL NUMBER:
 83132-0226

POWER OUTPUT:
 5.5 Torque Power ( 3.5hp)

SHAFT MOUNTING:
 Horizontal Shaft , OHV

SHAFT SIZE:
(Diameter x Length)

5/8" x 2-27/64" threaded shaft

STARTER TYPE:
 Recoil Starter

APPLICATION(S):


WEIGHT:
 29 LBS

WARRANTY:
 2 Years Consumer - 1 Year Commercial
NOTES/FEATURES:
Replaces 83132-1036



Features Benefits

Overhead Valve Design (OHV)

Runs cooler and cleaner delivering more power, smoother operation, longer engine life, and improved fuel economy

Compact and Dependable Power

Excellent performance for mid-duty utility applications

Dura-Lubeâ„¢ Splash Lubrication System

Gear driven system continuously supplies oil to all internal parts

Automotive-Style paper filter

Protects engine from dirt to extend engine life

Cast Iron Cylinder Sleeve

Withstands wear and abuse while providing improved oil control

Dual Ball Bearings

Reduces wear for longer life

2.0 Quart Fuel Tank

For long run time



Torque* (ft-lbs, gross) 5.50
Engine Displacement 127
Number of Cylinders Single
Engine Configuration Horizontal Shaft
Engine Technology OHV
Length (in) 10.00
Width (in) 13.60
Height (in) 12.6
Weight (lbs) 29.5
Bore (cu in) 2.44
Stroke 1.65
Engine Fuel Gasoline
Fuel Tank Capacity (gallons) 0.5
Lubrication System Splash
Oil Capacity (oz) 20
Starter Rewind
Muffler Super Lo-Tone
Fuel Shutoff Valve NA
*All power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
*All power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.




LINKS:

• Briggs Repower Information
• Locate A Briggs Service Center

Specifications






Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

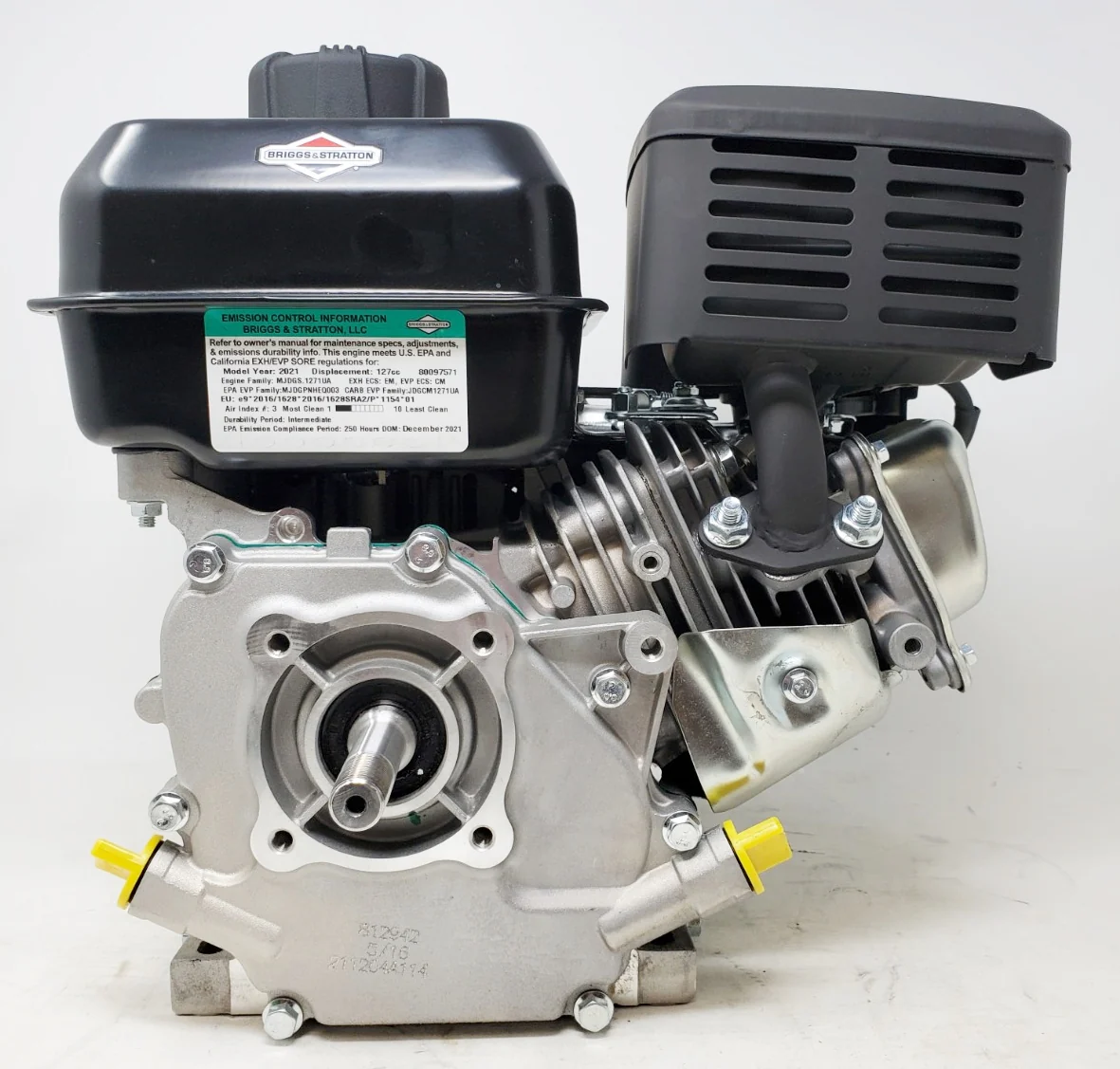

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

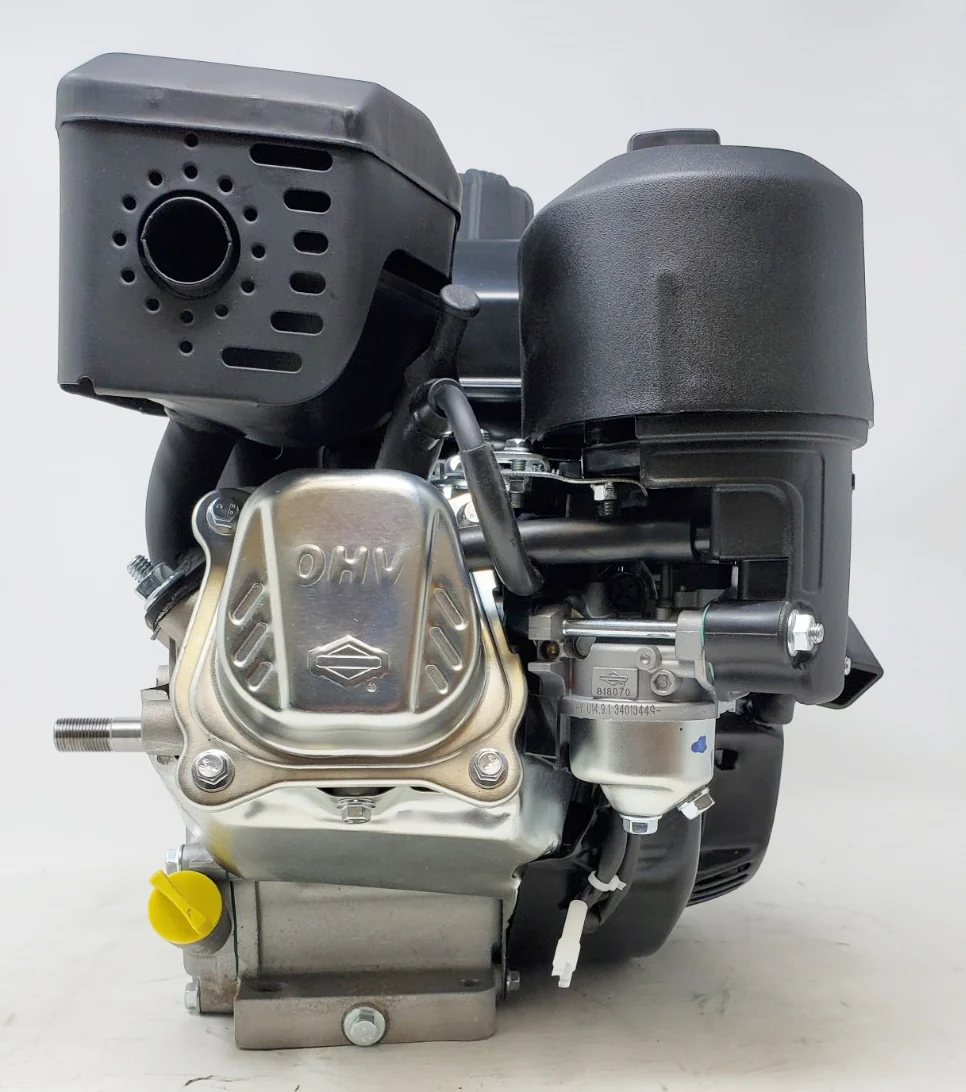

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

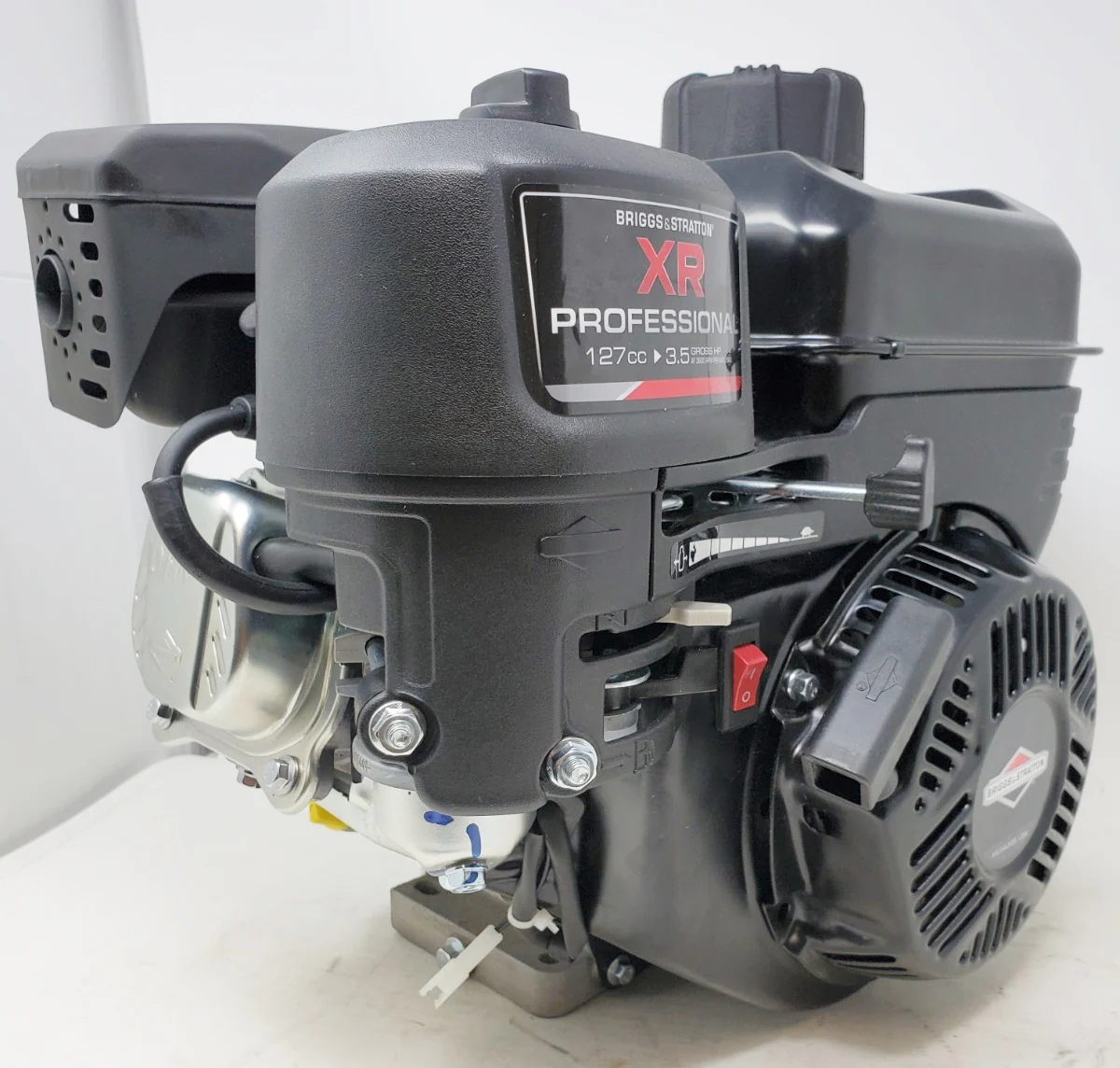

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

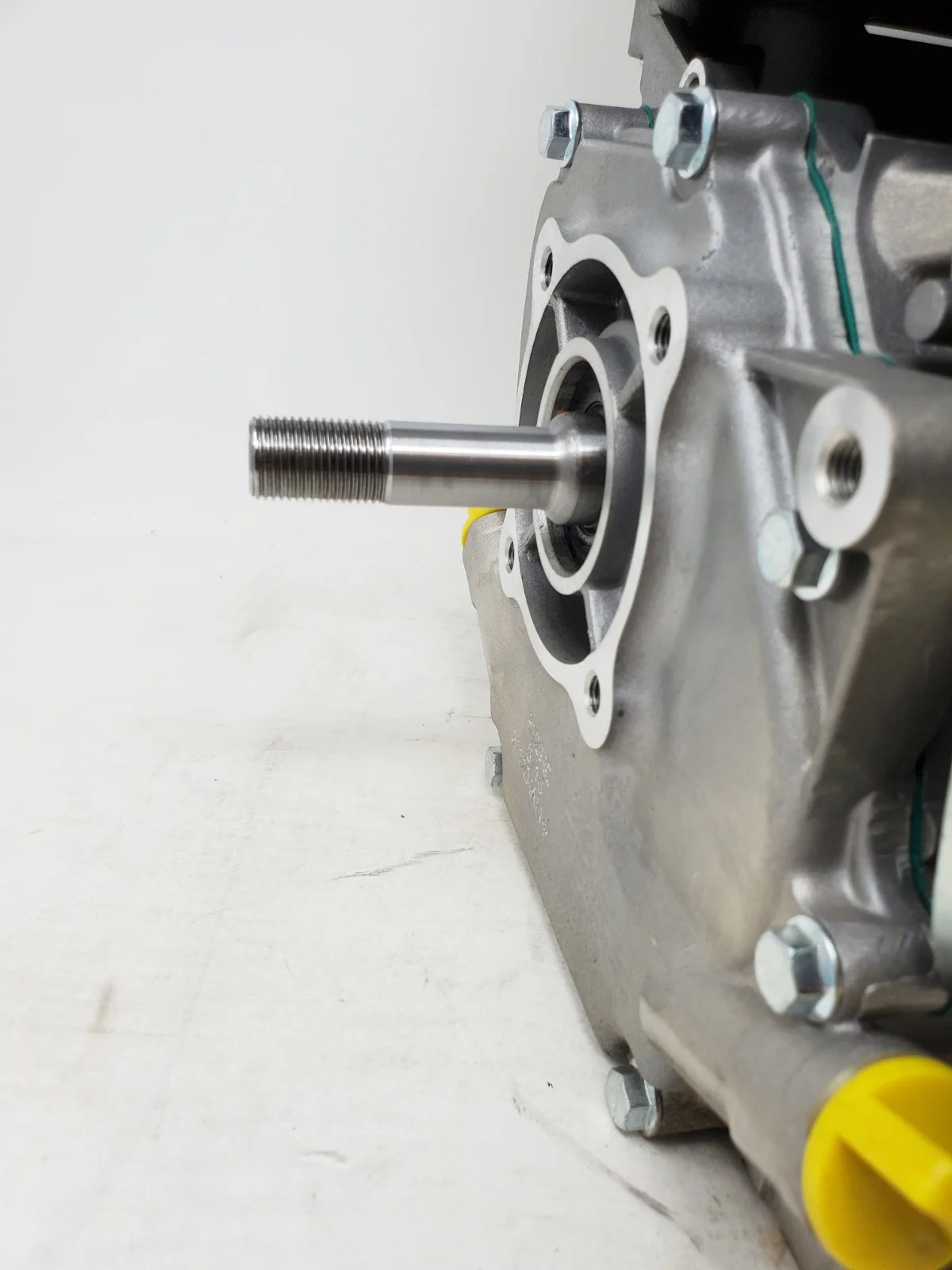

Briggs and Stratton 127cc XR Series Engine 3.5hp OHV 5/8" Threaded Shaft #83132-0226 - Image 6
