Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120
HomeStore

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120

$959.70

Original: $3,199.00

-70%
Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120—

$3,199.00

$959.70

The Story

20 hp Command OHV Horizontal
Replaces Terramite Backhoe.
No shaft
electric start.
Cast iron cylinder sleeves,
no tank, fuel pump.
2 year warranty.
Replaces 64519, CH640-3055
Model CH640-3120.
106 lbs

This gasoline-driven, 4-cycle, horizontal shaft 20 HP engine has reliable features, including: OHV, cast iron v-twin cylinder liners, and aluminum block construction.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Dual-element air filter with foam pre-cleaner
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
 Peak Power Performance
  • Overhead valve (OHV) design
  • In-line fuel filter
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL Command CH20
MAX. POWER @ 3600 RPM hp (kW) 20 (14.9)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.6 (44.2) @ 2600
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2.0 (1.9)
LUBRICATION Full pressure w/full-flow filter
DIMENSIONS L x W x H in. 13.8 x 17.7 x 19.0

*Length is to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner cover to mounting feet.

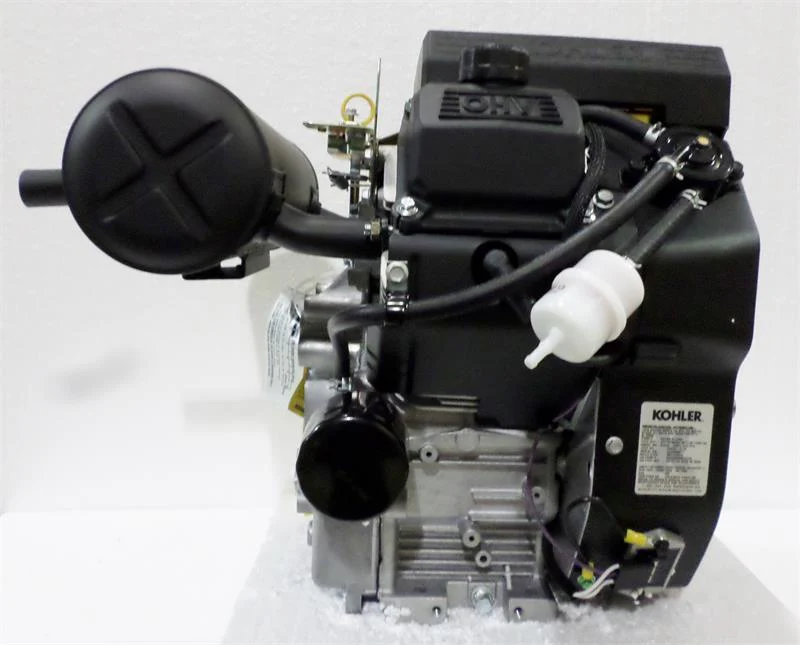

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

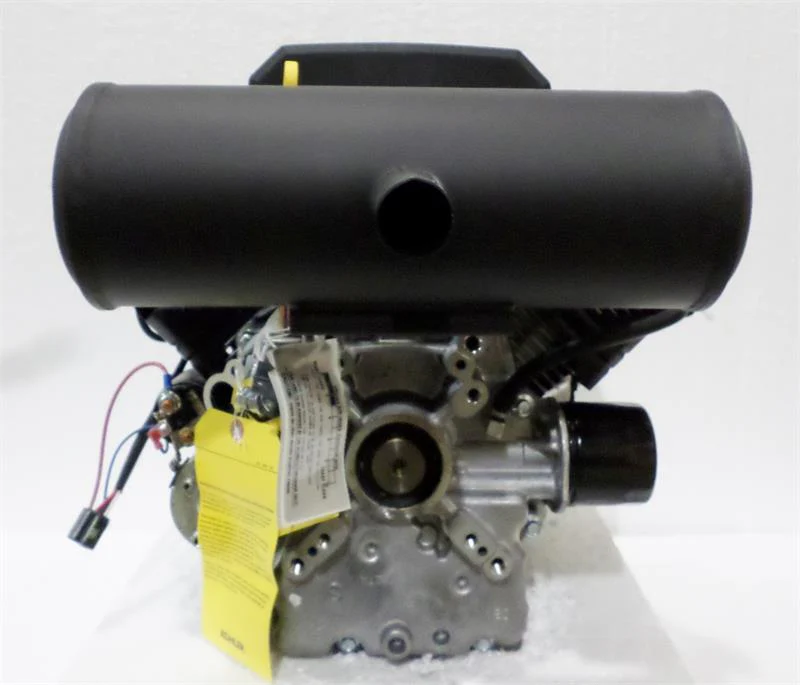

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

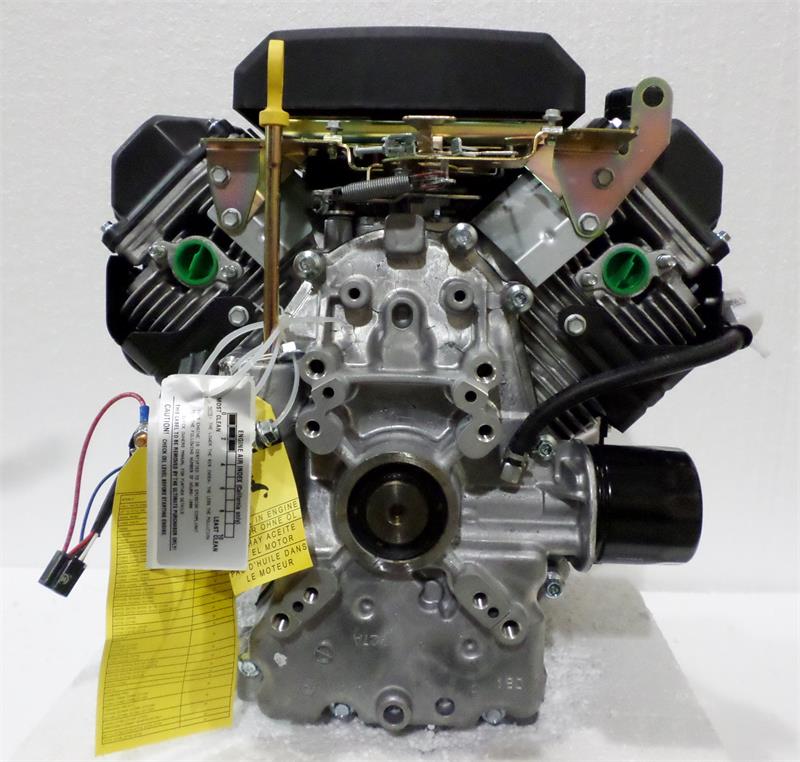

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

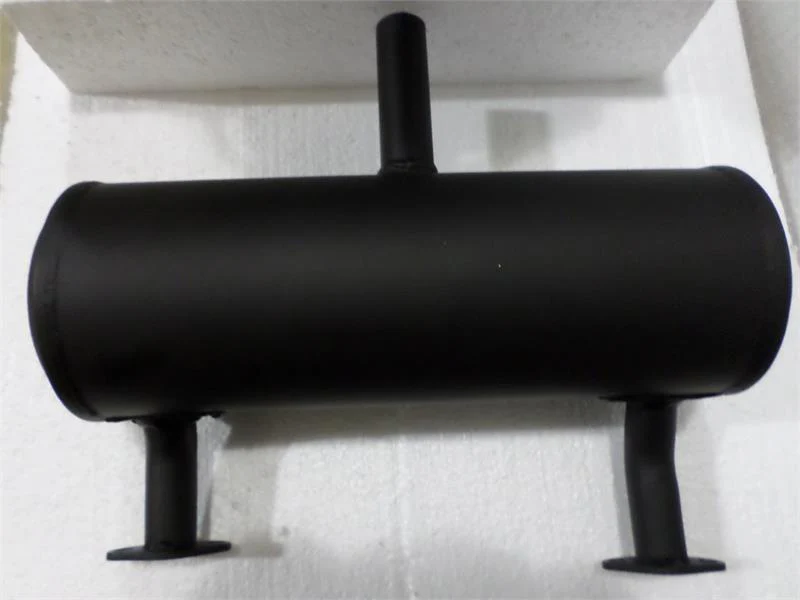

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

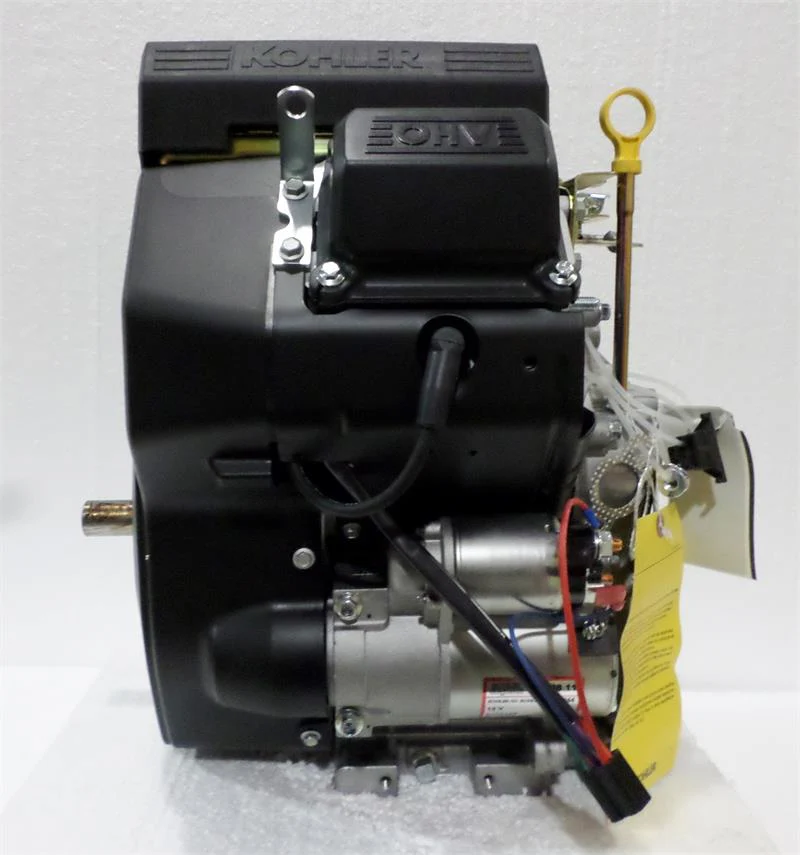

Kohler V-Twin Engine 20.5 HP 674cc Command Terramite Engine #CH640-3120 - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

20 hp Command OHV Horizontal
Replaces Terramite Backhoe.
No shaft
electric start.
Cast iron cylinder sleeves,
no tank, fuel pump.
2 year warranty.
Replaces 64519, CH640-3055
Model CH640-3120.
106 lbs

This gasoline-driven, 4-cycle, horizontal shaft 20 HP engine has reliable features, including: OHV, cast iron v-twin cylinder liners, and aluminum block construction.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Dual-element air filter with foam pre-cleaner
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
 Peak Power Performance
  • Overhead valve (OHV) design
  • In-line fuel filter
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL Command CH20
MAX. POWER @ 3600 RPM hp (kW) 20 (14.9)
DISPLACEMENT cu. in. (cc) 38.0 (624)
BORE in. (mm) 3.03 (77)
STROKE in. (mm) 2.64 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm) 32.6 (44.2) @ 2600
COMPRESSION RATIO 8.5:1
DRY WEIGHT lbs. (kg) 90 (41)
OIL CAPACITY U.S. quarts (liters) 2.0 (1.9)
LUBRICATION Full pressure w/full-flow filter
DIMENSIONS L x W x H in. 13.8 x 17.7 x 19.0

*Length is to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner cover to mounting feet.
