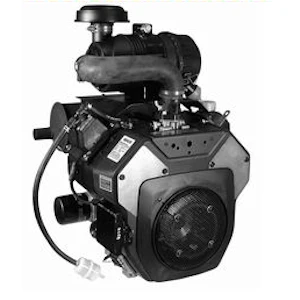

Kohler V-Twin Command Pro 25 HP 725cc 1-1/8" x 3-11/32" #CH740-3145
HomeStore

Kohler V-Twin Command Pro 25 HP 725cc 1-1/8" x 3-11/32" #CH740-3145

Kohler V-Twin Command Pro 25 HP 725cc 1-1/8" x 3-11/32" #CH740-3145

$1,049.70

Original: $3,499.00

-70%
Kohler V-Twin Command Pro 25 HP 725cc 1-1/8" x 3-11/32" #CH740-3145—

$3,499.00

$1,049.70

The Story

25 hp Command Pro V-twin
1-1/8" x 3-11/32"
7/16 x 20 Tapped
1/4" Keyway
Scag replacement engine.
Replaces spec 68579, 68613, CH730-0066.
OHV, cast iron cylinder liners, full pressure lube w/ oil filter,
engine mounted oil cooler, fuel pump,
12 volt electric start w/ alternator,
less gas tank, includes new muffler.
2 year warranty.
Model CH740-3145.
108 lbs

This v-twin cylinder, air-cooled, 25 HP horizontal-shaft engine is built to last. OHV, cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command Pro ready for the long haul.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Oil cooler
  • Hardened crankshaft journals
  • PTO thrust bearing
  • High-efficiency fan and screen
  • Heavy-duty air cleaner
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
Peak Power Performance
  • Accelerator pump carburetor
  • High-performance spark plugs
  • 20 amp charging, regulated
  • Larger in-line fuel filter
  • Overhead valve (OHV) design
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Extended maintenance intervals
  • Yellow oil fill cap & dipstick handle
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL
Command PRO CH740
MAX. POWER @ 3600 RPM hp (kW)
25 (20.1)
DISPLACEMENT cu. in. (cc)
44.0 (725)
BORE in. (mm)
3.3 (83)
STROKE in. (mm)
2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm)
42.7 (57.9) @ 3000
COMPRESSION RATIO
9.0:1


OIL CAPACITY U.S. quarts (liters)
2.0 (1.9)
LUBRICATION
Full pressure w/full-flow filter
DIMENSIONS L x W x H in.
13.8 x 17.7 x 19.0
*Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.

Description

25 hp Command Pro V-twin
1-1/8" x 3-11/32"
7/16 x 20 Tapped
1/4" Keyway
Scag replacement engine.
Replaces spec 68579, 68613, CH730-0066.
OHV, cast iron cylinder liners, full pressure lube w/ oil filter,
engine mounted oil cooler, fuel pump,
12 volt electric start w/ alternator,
less gas tank, includes new muffler.
2 year warranty.
Model CH740-3145.
108 lbs

This v-twin cylinder, air-cooled, 25 HP horizontal-shaft engine is built to last. OHV, cast iron cylinder liners, and aluminum block construction make the 4-cycle, gasoline-powered Command Pro ready for the long haul.
Easy Dependable Starts
  • SMART-CHOKE carburetor
  • Electronic ignition system
  • Solenoid shift starter
Reliability & Long-life Design
  • Oil cooler
  • Hardened crankshaft journals
  • PTO thrust bearing
  • High-efficiency fan and screen
  • Heavy-duty air cleaner
  • Cast iron cylinder liners
  • Hydraulic valve lifters
  • Full-pressure lubrication
  • Spin-on, full-flow oil filter
Peak Power Performance
  • Accelerator pump carburetor
  • High-performance spark plugs
  • 20 amp charging, regulated
  • Larger in-line fuel filter
  • Overhead valve (OHV) design
Quiet, Smooth Operation
  • Engineered material blower housing
  • Mechanical fuel pump
  • CARB & EPA emission-certified
User-friendly Maintenance
  • Extended maintenance intervals
  • Yellow oil fill cap & dipstick handle
  • Dual oil drains
  • Easy-access oil fill/dipstick
  • Two-year limited warranty
Specifications
Shaft: Horizontal
Cylinders: V-Twin
Cooling: Air
Engine Type: 4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block
MODEL
Command PRO CH740
MAX. POWER @ 3600 RPM hp (kW)
25 (20.1)
DISPLACEMENT cu. in. (cc)
44.0 (725)
BORE in. (mm)
3.3 (83)
STROKE in. (mm)
2.6 (67)
PEAK TORQUE @ MAXIMUM lbs. ft. (Nm)
42.7 (57.9) @ 3000
COMPRESSION RATIO
9.0:1


OIL CAPACITY U.S. quarts (liters)
2.0 (1.9)
LUBRICATION
Full pressure w/full-flow filter
DIMENSIONS L x W x H in.
13.8 x 17.7 x 19.0
*Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner to mounting feet.
