Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149
HomeStore

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149

$725.00
Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149
$725.00

The Story

9.5hp Kohler Command Pro Engine
 1" x 3.48" keyed shaft, tapped 7/16"-20.
OHV, dual ball bearing PTO, cast iron cylinder liner,
Recoil start, low oil device.
Universal replacement type engine
3 year warranty.
Model CH395-3149 (Replaces CH395-3011).
65 lbs

Engine Type:

4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block

Model
Command PRO CH395
Max Power @3600 RPM hp (kW) 9.5 (7.1)
Displacement cu in (cc) 16.9 (277)
Bore in (mm) 3.1 (78)
Stroke in (mm) 2.3 (58)
Peak Torque @ Maximum lbs ft (Nm) 13.2 (17.8)
Compression Ratio 8.2:1
Dry Weight lbs (kg) 61.5 (27.8)
Oil Capacity U.S. quarts (L) 1.2 (1.1)
Lubrication Splash
Dimensions L x W x H in 15.9 x 16.8 x 16.7

Kilowatt (kW) and horsepower (HP) specifications for Kohler general purpose engines are calculated pursuant to the Society of Automotive Engineers (SAE) J1940 for horsepower ratings - calculated with the air cleaner and muffler removed, per the SAE standard. Actual engine horsepower is lower and affected by, but not limited to, accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed and ambient operating conditions (temperature, humidity and altitude). The reason for this standard is to provide consistent measurement to customers who may want to control the intake and exhaust features of the engine. It is important to note that the power output of all Kohler engines is always as advertised. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications,designs and standard equipment without notice and without incurring obligation.

Standard Features:

Overhead Valve Design

Electronic Ignition

Quad-Clean

TM 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner

Dual Oil Fill Locations and Oil Drains

Cast Iron Cylinder Liner

7.4 L Metal Tank w/Strainer

Fuel Shut-off Valve

Stellite

® Exhaust Valve

Engine Mounted Throttle and Choke Controls, Remote Throttle Ready

Oil Sentry

TM Switch Installed (No Light)

Dual Ball Bearings, PTO and Flywheel

Balance Shaft

Metal Blower Housing

Indexable Recoil Starter

Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length,

Tapped 7/16-20 UNF

PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep

and 5" (127 mm) Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep

Large Capacity Muffler w/Heat Shield and Spark Arrestor

Owner's Manual (Multi-language for Europe or Quad-Language for rest of the world)

EPA Phase 2 and EU Stage 2 Emission Compliance

Color - Black with Cast Aluminum

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

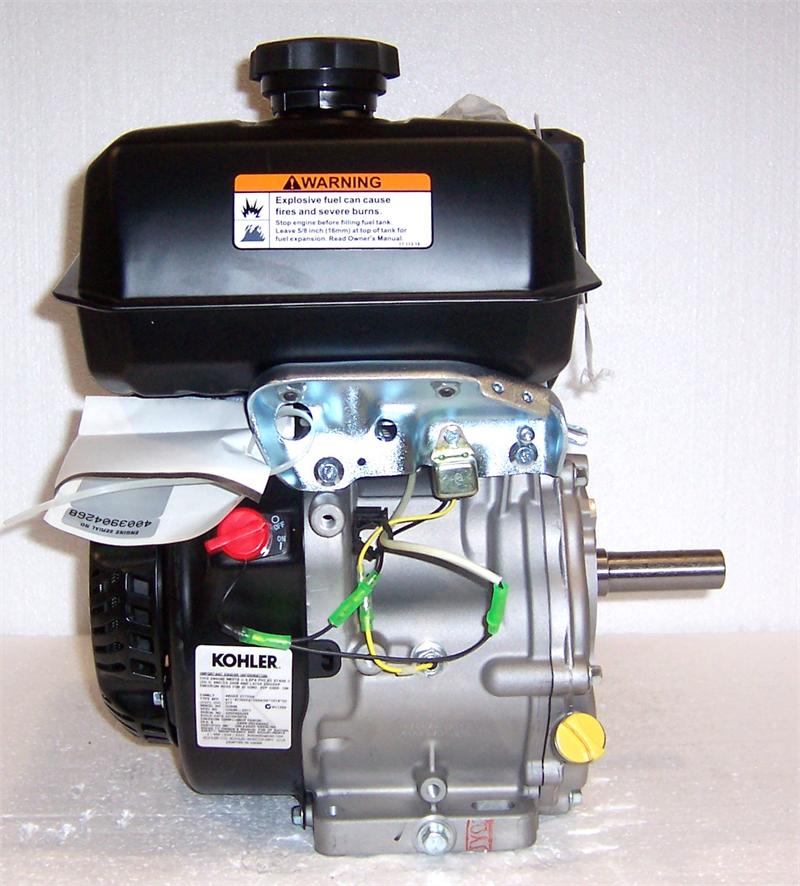

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

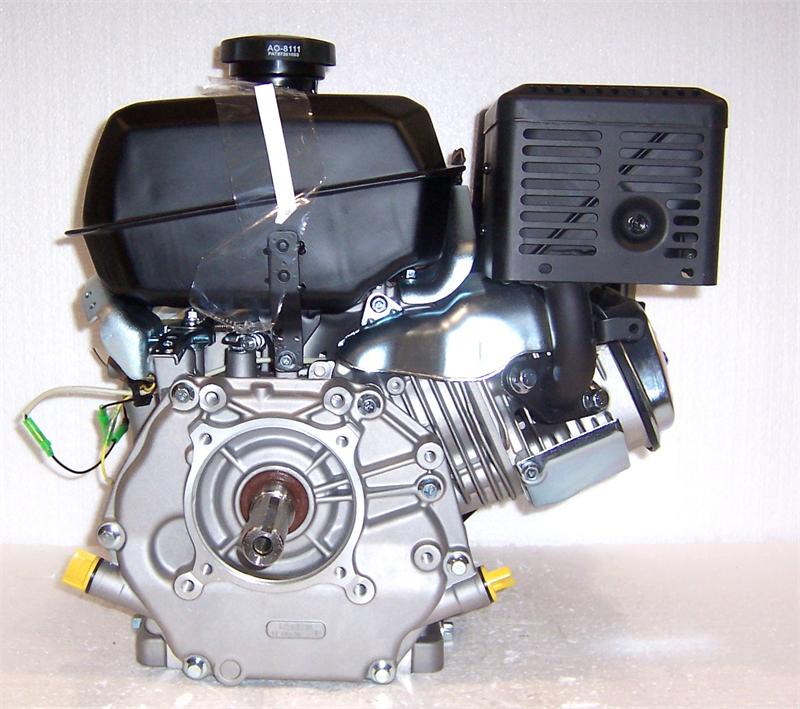

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

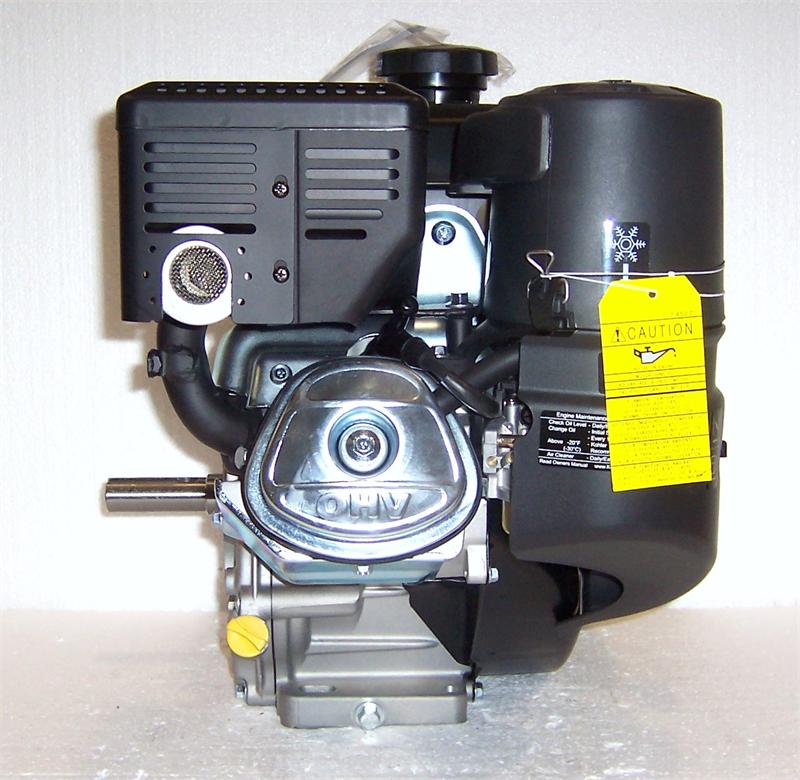

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

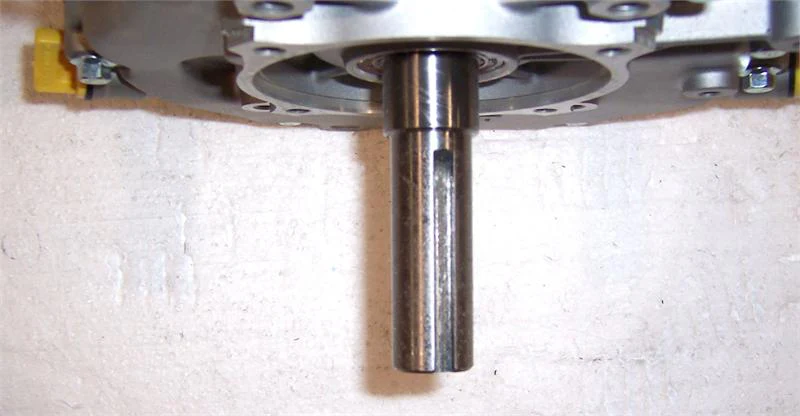

Kohler Horizontal 9.5 HP Command PRO 1" x 3.48" CH395-3011 #CH395-3149 - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

9.5hp Kohler Command Pro Engine
 1" x 3.48" keyed shaft, tapped 7/16"-20.
OHV, dual ball bearing PTO, cast iron cylinder liner,
Recoil start, low oil device.
Universal replacement type engine
3 year warranty.
Model CH395-3149 (Replaces CH395-3011).
65 lbs

Engine Type:

4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block

Model
Command PRO CH395
Max Power @3600 RPM hp (kW) 9.5 (7.1)
Displacement cu in (cc) 16.9 (277)
Bore in (mm) 3.1 (78)
Stroke in (mm) 2.3 (58)
Peak Torque @ Maximum lbs ft (Nm) 13.2 (17.8)
Compression Ratio 8.2:1
Dry Weight lbs (kg) 61.5 (27.8)
Oil Capacity U.S. quarts (L) 1.2 (1.1)
Lubrication Splash
Dimensions L x W x H in 15.9 x 16.8 x 16.7

Kilowatt (kW) and horsepower (HP) specifications for Kohler general purpose engines are calculated pursuant to the Society of Automotive Engineers (SAE) J1940 for horsepower ratings - calculated with the air cleaner and muffler removed, per the SAE standard. Actual engine horsepower is lower and affected by, but not limited to, accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed and ambient operating conditions (temperature, humidity and altitude). The reason for this standard is to provide consistent measurement to customers who may want to control the intake and exhaust features of the engine. It is important to note that the power output of all Kohler engines is always as advertised. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications,designs and standard equipment without notice and without incurring obligation.

Standard Features:

Overhead Valve Design

Electronic Ignition

Quad-Clean

TM 4-Stage All-Season Heavy Duty Cyclonic Air Cleaner

Dual Oil Fill Locations and Oil Drains

Cast Iron Cylinder Liner

7.4 L Metal Tank w/Strainer

Fuel Shut-off Valve

Stellite

® Exhaust Valve

Engine Mounted Throttle and Choke Controls, Remote Throttle Ready

Oil Sentry

TM Switch Installed (No Light)

Dual Ball Bearings, PTO and Flywheel

Balance Shaft

Metal Blower Housing

Indexable Recoil Starter

Crankshaft - 1.0" (25.4 mm) Diameter x 3.49" (88.61 mm) PTO Length,

Tapped 7/16-20 UNF

PTO Face - 6.5" (165.1 mm) Diameter Bolt Circle (4 Holes) 3/8-16 UNC x 0.71" (18 mm) Deep

and 5" (127 mm) Diameter Bolt Circle (4 Holes) 5/16-24 UNF x 0.71" (18 mm) Deep

Large Capacity Muffler w/Heat Shield and Spark Arrestor

Owner's Manual (Multi-language for Europe or Quad-Language for rest of the world)

EPA Phase 2 and EU Stage 2 Emission Compliance

Color - Black with Cast Aluminum
