Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02
HomeStore

Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02

Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02

$898.50

Original: $2,995.00

-70%
Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02—

$2,995.00

$898.50

The Story

Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02
1-1/8" x 3.94" Horizontal shaft
Does not come with muffler
20amp alternator
Dual element air cleaner

Not available for sale in California.


FD Series

Kawasaki FD Series engines are lightweight, liquid-cooled powerhouses. Their overhead valve, V-twin design delivers power in tight spaces for zero-turn and stand-on or front mount riders, lawn and garden tractors, utility vehicles, and even generators and pumps.
  • Overhead v-valve
  • Liquid-cooled
  • 90° V-twin
  • Magneto spark ignition
  • Multi-position, dual element air cleaner
  • Twin barrel carburetor with fuel shut-off solenoid
  • Oil pressure switch
Specifications
Displacement
745 cc (45.5 cu. in.)
Number of Cylinders
2
Bore x Stroke
3.07 x 3.07 in. (78 x 78mm)
Compression Ratio
8.6:1
Oil capacity w/filter
2.1 U.S. qt ( 2.0 liters)
Maximum Power
25.0 hp (18.7 kW)
at 3,600 RPM
Maximum Torque
41.0 ft lbs (55.6 N·m)
at 2,600 RPM
Dry weight w/o muffler
122.0 lbs (55.3 kg)
Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

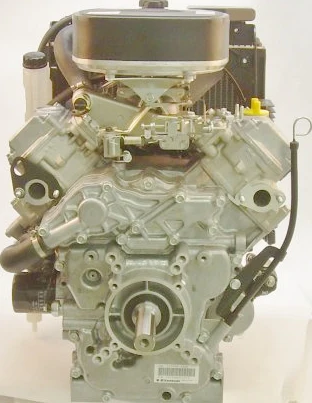

Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Kawasaki Horizontal 25 HP Liquid Cooled Engine 1-1/8" X 3.94" #FD750D-RS02
1-1/8" x 3.94" Horizontal shaft
Does not come with muffler
20amp alternator
Dual element air cleaner

Not available for sale in California.


FD Series

Kawasaki FD Series engines are lightweight, liquid-cooled powerhouses. Their overhead valve, V-twin design delivers power in tight spaces for zero-turn and stand-on or front mount riders, lawn and garden tractors, utility vehicles, and even generators and pumps.
  • Overhead v-valve
  • Liquid-cooled
  • 90° V-twin
  • Magneto spark ignition
  • Multi-position, dual element air cleaner
  • Twin barrel carburetor with fuel shut-off solenoid
  • Oil pressure switch
Specifications
Displacement
745 cc (45.5 cu. in.)
Number of Cylinders
2
Bore x Stroke
3.07 x 3.07 in. (78 x 78mm)
Compression Ratio
8.6:1
Oil capacity w/filter
2.1 U.S. qt ( 2.0 liters)
Maximum Power
25.0 hp (18.7 kW)
at 3,600 RPM
Maximum Torque
41.0 ft lbs (55.6 N·m)
at 2,600 RPM
Dry weight w/o muffler
122.0 lbs (55.3 kg)
